Staged Extraction - EXPERIMENTAL¶

Overview¶

Staged extraction is a multi-pass extraction mode for the LLM backend when using many-to-one processing. It is useful for complex nested templates and for models that benefit from smaller, focused tasks.

Set extraction_contract="staged" in your config or use --extraction-contract staged on the CLI. Staged currently uses legacy prompt-schema mode only (no API-level structured output) to avoid provider-specific failures; the global structured_output setting does not apply to staged.

Experimental feature - Not production-ready

Staged extraction is still in an experimental phase.

Expect ongoing quality improvements, but also be aware that clean breaks may happen and backward compatibility is not guaranteed yet.

When to use:

Nested Pydantic templates with lists and sub-objects (e.g. offers with included guarantees)
You want stable identity-first extraction (IDs from the document, then fill)
Direct single-pass extraction struggles with consistency

When to use direct (default):

Flat or simple templates
You prefer a single extraction pass and programmatic merge

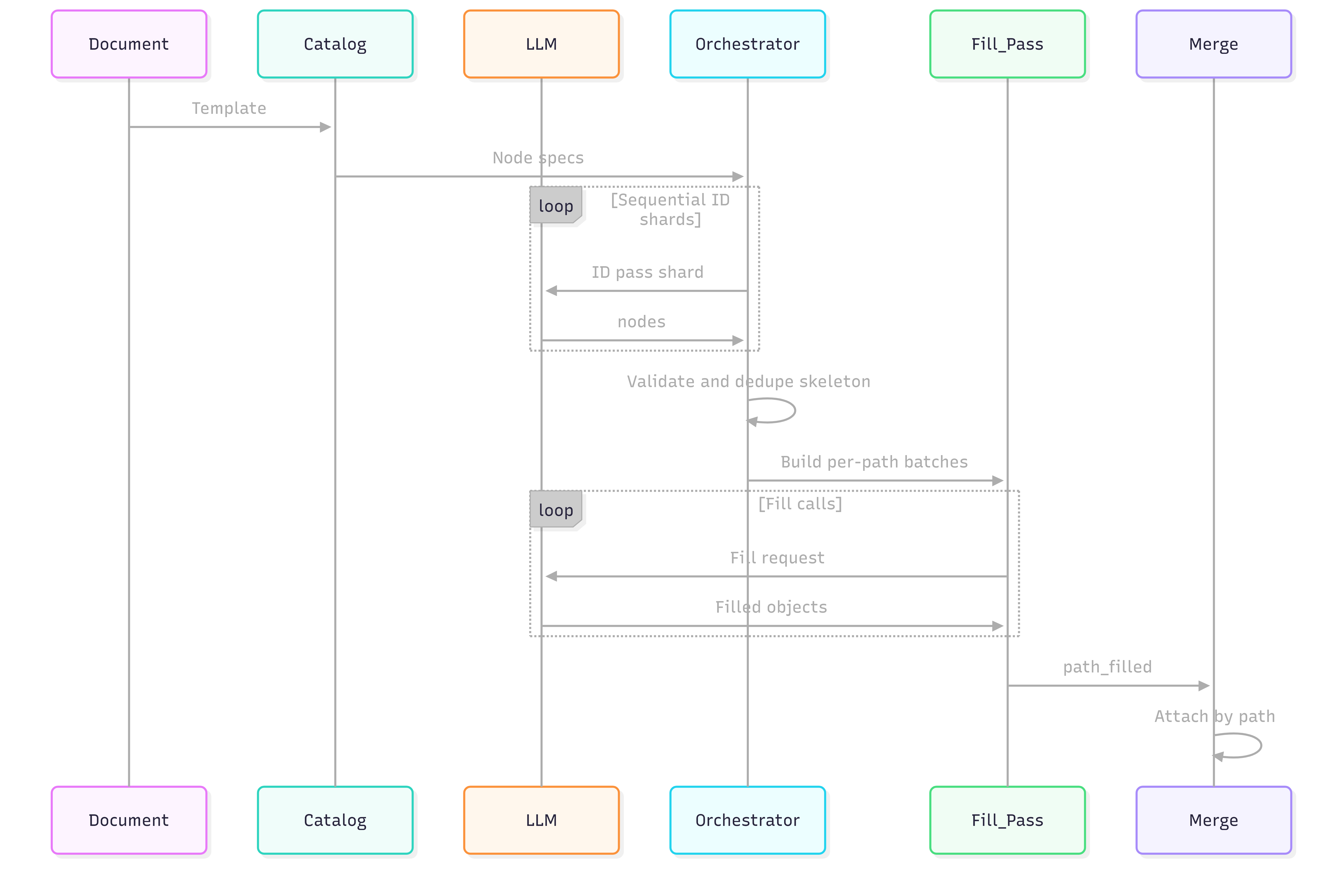

How It Works¶

Staged extraction runs three conceptual phases:

Catalog — Built from your Pydantic template. Derives all extractable node types and paths (e.g. root, offres[], offres[].garanties_incluses[]) and their graph_id_fields and parent rules.
ID pass — The LLM discovers node instances per path with only the identifiers (from graph_id_fields) and parent linkage. Output is a skeleton: path, ids, parent. No full content yet. By default only paths that have identity fields are sent (reducing prompt size and truncation). ID pass can be auto-sharded when the catalog is large (root and top-level paths first); shards run in parallel when parallel_workers > 1.
Fill pass — For each path, the LLM fills full schema content for the skeleton instances. Paths are processed in bottom-up order (leaf paths first). Fill calls can run in parallel. Each path gets a projected schema (no nested child paths in the same call), so root and children stay consistent. Results are merged into the root model by parent linkage.
Quality gate — After merge, a quick check runs (e.g. root instance present, minimum instances). If it fails, the pipeline can fall back to direct extraction so you still get a result; the trace will indicate why (e.g. fallback_reason: "quality_gate_failed").

List paths and many-to-many — For paths that are lists under another list (e.g. offres[].garanties_incluses[]), the same child entity can belong to multiple parents. The pipeline keeps one descriptor per (parent, child) pair in the ID pass and merge, and fills each unique child once in the fill pass, then reuses that filled object for every parent. That preserves many-to-many relationships in the graph (e.g. one guarantee linked to several offers) without duplicate fill calls.

Staged Extraction

Schema requirements¶

Staged extraction succeeds when the ID pass can discover node instances (root and nested entities) and the quality gate passes. Your Pydantic template should be designed with that in mind:

Root model must have graph_id_fields so at least one root instance can be discovered.
Entities that should appear in the ID pass must have graph_id_fields; use required, short, extractable fields and add schema examples.
Components (is_entity=False) are not identity paths by default; use edge() with edge_label when they must appear in the catalog.
Keep nesting depth and catalog size reasonable to avoid truncation and excessive sharding.

For a domain-agnostic checklist, identity best practices, and troubleshooting (e.g. mapping missing_root_instance or insufficient_id_instances to schema fixes), see Schema design for staged extraction.

Staged-friendly template guidelines¶

Templates with many nested entities (e.g. list[Exclusion] with Exclusion containing list[Bien]) produce a large catalog and more ID-pass shards. That can lead to slower runs, more truncation, and retries. To keep the ID pass fast and reliable:

Prefer list[str] (or other shallow types) for high-cardinality nested concepts when you only need labels or short values (e.g. exclusion titles, bien names). The catalog does not create node paths for list[str], so you get fewer paths and smaller ID responses.
Reserve nested Pydantic entities (list[SomeModel]) for when you need full structure and identity in the graph (e.g. deduplication by id, edges to other entities).

Example: the MRH insurance template has a full variant (docs/examples/templates/cgv_mrh.py) with Garantie.exclusions_specifiques: list[Exclusion] and Exclusion.biens_exclus: list[Bien], which yields many catalog paths. The staged-optimized variant (docs/examples/templates/cgv_mrh_staged.py) uses exclusions_specifiques: list[str] and biens_couverts: list[str] on Garantie/Option, reducing catalog size and ID pass time while still filling the root structure. Use the staged variant when you want faster extraction and do not need full entity nodes for every exclusion or bien.

Configuration and options¶

All options can be set in Python via PipelineConfig or a config dict passed to run_pipeline(). CLI flags (when available) override config-file defaults.

Preset and overrides¶

The preset (standard or advanced) sets default values for retries, workers, fill cap, and ID shard size. Overrides apply when provided.

Python (`PipelineConfig` / config dict)	CLI flag	Default	Description
`extraction_contract`	`--extraction-contract`	`"direct"`	Set to `"staged"` to enable staged extraction.
`staged_tuning_preset`	`--staged-tuning`	`"standard"`	Preset: `"standard"` or `"advanced"` (advanced = larger ID shards, larger fill batches).
`staged_pass_retries`	`--staged-retries`	preset (`standard`: 2)	Retries per staged pass when the LLM returns invalid JSON.
`parallel_workers`	`--parallel-workers`	preset (`standard`: 1)	Parallel workers for the fill pass and for the ID pass shards; also used for delta.
`staged_nodes_fill_cap`	`--staged-nodes-fill-cap`	preset (`standard`: 5)	Max node instances per LLM call in the fill pass.
`staged_id_shard_size`	`--staged-id-shard-size`	preset (`standard`: 0)	Paths per ID-pass call; `0` = no sharding or auto-shard when catalog is large.

ID pass¶

Python (config dict)	CLI flag	Default	Description
`staged_id_identity_only`	(config only)	`True`	Use only paths with identity fields in the ID pass (smaller prompts).
`staged_id_compact_prompt`	(config only)	`True`	Use compact ID prompt and omit full schema in user message.
`staged_id_auto_shard_threshold`	(config only)	`10`	If catalog paths exceed this and shard size is 0, auto-enable sharding.
`staged_id_shard_min_size`	(config only)	`2`	Minimum paths per shard when auto-sharding.
`staged_id_max_tokens`	`--staged-id-max-tokens`	`16384`	Max tokens for ID pass responses; avoids truncation on large catalogs. Set to `None` to use client default.
`staged_fill_max_tokens`	`--staged-fill-max-tokens`	`None`	Max tokens for fill pass responses; `None` = client default.

Quality gate¶

When the quality gate fails (e.g. no root instance, too few instances), the pipeline returns direct extraction instead of the staged result. Check the trace for quality_gate and fallback_reason.

Python (config dict)	Default	Description
`staged_quality_require_root`	`True`	Require at least one root instance; if not met, gate fails.
`staged_quality_min_instances`	`1`	Minimum total skeleton instances for gate.
`staged_quality_max_parent_lookup_miss`	`0`	Max allowed parent lookup misses before gate fails.

Quality gate options are not CLI flags; set them in a config file or config dict.

Usage¶

Python API¶

Pass options via PipelineConfig or a dict to run_pipeline():

from docling_graph import PipelineConfig, run_pipeline

config = PipelineConfig(
    source="document.pdf",
    template="templates.MyNestedTemplate",
    backend="llm",
    processing_mode="many-to-one",
    extraction_contract="staged",
    staged_tuning_preset="standard",  # or "advanced"
    # Optional overrides (preset defaults applied when not set):
    # staged_pass_retries=2,
    # parallel_workers=2,
    # staged_nodes_fill_cap=5,
    # staged_id_shard_size=0,
    # staged_id_max_tokens=16384,  # default; set None for client default
    # staged_fill_max_tokens=None,
    # staged_quality_require_root=True,
    # staged_quality_min_instances=1,
    # staged_quality_max_parent_lookup_miss=0,
)
context = run_pipeline(config)

CLI¶

Staged-related flags (when using --extraction-contract staged):

# Enable staged
uv run docling-graph convert document.pdf \
  --template "templates.MyNestedTemplate" \
  --processing-mode many-to-one \
  --extraction-contract staged

# Preset and overrides
uv run docling-graph convert document.pdf \
  --template "templates.MyNestedTemplate" \
  --extraction-contract staged \
  --staged-tuning standard \
  --staged-retries 2 \
  --parallel-workers 2 \
  --staged-nodes-fill-cap 5 \
  --staged-id-shard-size 0

# Token limits (e.g. to avoid truncation)
uv run docling-graph convert document.pdf \
  --template "templates.MyNestedTemplate" \
  --extraction-contract staged \
  --staged-id-max-tokens 8192 \
  --staged-fill-max-tokens 8192

Options such as staged_id_identity_only, staged_id_compact_prompt, staged_id_auto_shard_threshold, and staged_quality_* have no CLI flags; set them in a config file or in a config dict when using the Python API.

See Configuration reference and convert command for the full list.

When to adjust:

Structured output: Staged uses legacy prompt-schema mode only (no API structured output); the global structured_output setting does not apply to staged.
Truncation or invalid ID output: Default staged_id_max_tokens=16384 reduces ID-pass truncation; increase or set staged_fill_max_tokens if fill responses are cut off.
Slow ID pass or “Response Truncated”: For large catalogs or long documents, the ID pass can hit the response token limit, causing truncation, validation errors, retries, and shard splits—and much longer runtimes. Set staged_id_max_tokens explicitly (e.g. 16384 or 32768) via CLI --staged-id-max-tokens or config so ID responses are less likely to truncate; this reduces retries and speeds up the ID pass.
Staged fallback to direct: If the trace shows fallback_reason: "quality_gate_failed", check quality_gate.reasons (e.g. missing root instance). Relax staged_quality_require_root or staged_quality_min_instances only if your template legitimately has no root or very few instances.
Large catalogs: Defaults use identity-only paths and auto-sharding; tune staged_id_auto_shard_threshold or staged_id_shard_size via config if the ID pass is still too heavy. For very large catalogs, also increase staged_id_max_tokens to avoid truncation and extra retries.

Next Steps¶

Schema design for staged extraction — Identity fields, linkage, and schema checklist for staged mode
Extraction Backends — LLM vs VLM and extraction contracts
Model Merging — How chunk results are merged
Configuration reference — Full config and staged fields
